Oracle Cloning-Conventional Restore method and Rename DB post DB Refresh

-

Oracle Cloning - Conventional Restore method and Rename DB post DB Refresh

For DBA Refreshing Table, Schema and Database are routine activity. You can refresh/Clone database using below method:

1.Conventional Restore method and Rename DB post DB Refresh
2.Conventional Duplicate Database method
3. Active database Cloning
4.Backup Base Cloning

We will cover all these methods of cloning in individual blogs. In This blog , We will discuss about how to refresh/Clone Database using Conventional Restore method and Rename DB post DB Refresh.

In this method , We will first restore target database on the auxiliary server as target DB name and post restore , We will change the name of the target database to auxiliary database.  Below are the steps for cloning using this method:

1) Make the Source Database entry in oratab

2) Set ORACLE_SID environment variable: ORACLE_SID should be set to the proper SID name (target DB)


3) .        Restore spfile from backup:

To restore the spfile, you first need to startup the database in the nomount state. This starts up the database using a dummy parameter file. After that you can restore the spfile from the backup. Finally you restart the database in nomount state. The restart is required in in order to start the instance using the restored parameter file. Below is snapshot RMAN transcript for the foregoing procedure. Note the difference in SGA size and components between the two startups:



RMAN> startup nomount

Note: if you get memory error while running startup nomount command

Set environment variable  ORA_RMAN_SGA_TARGET before executing rman. For example:

 $ export ORA_RMAN_SGA_TARGET=350


Restore spfile from full online backup.

RMAN>restore spfile from ‘H:\Restore\orabackup\flash_recovery_area\\BACKUPSET\2008_09_09\O1_MF_NCSN0_DAILY_FULL_ONLINE_4DCDWVKM_.BKP’;


4) Create pfile from spfile.

Open Another command prompt window and set oracle_sid=<Target DB>

Open sqlplus and create pfile from spfile.


5) Change the parameter paths in the pfile using OS editor.

Pfile will be created at %ORACLE_HOME%\database\initngmes.ora

Note :

  •  DB_Name  and Instance_name  need to set as source database sid
  • all folder like bdump,cdump and controlfile dir .. name need to set as target database

Contents of Pfile After change :

$ cat inittargtdb.ora
*._trace_files_public=true
*.audit_sys_operations=TRUE
*.audit_trail='DB'
*.background_dump_dest='/u01/app/oracle/admin/auxdb/bdump'
*.bitmap_merge_area_size=2097152
*.COMPATIBLE='12.2.0.2'
*.control_files='/u02/oradata/auxdb/auxdb_control_01.ctl','/u03/oradata/auxdb/auxdb_control_02.ctl','/u04/oradata/auxdb/auxdb_control_03.ctl'
*.core_dump_dest='/u01/app/oracle/admin/auxdb/cdump'
*.create_bitmap_area_size=2097152
*.cursor_space_for_time=TRUE
*.db_block_size=16384
*.db_domain='world'
*.db_file_multiblock_read_count=64
*.db_files=750
*.db_name='targtdb'
*.db_recovery_file_dest='/orabackup/flash_recovery_area'
*.db_recovery_file_dest_size=250G
*.db_writer_processes=8
*.EVENT='1555 TRACE NAME ERRORSTACK LEVEL 1'
*.fast_start_mttr_target=300
*.global_names=false
*.hash_area_size=2097152
*.instance_name='targtdb'
*.job_queue_processes=10
*.log_archive_format='ora_arch_auxdb_%t_%s_%r.log'
*.max_dump_file_size='10240'# limit trace file size to 5M each
*.nls_date_format='DD-MON-RR'
*.O7_DICTIONARY_ACCESSIBILITY=FALSE
*.open_cursors=5000
*.os_authent_prefix=''
*.os_roles=FALSE
*.pga_aggregate_target=4G
*.processes=350
*.query_rewrite_enabled='TRUE'
*.remote_dependencies_mode='signature'
*.remote_login_passwordfile='EXCLUSIVE'
*.remote_os_authent=FALSE
*.remote_os_roles=FALSE
*.resource_limit=TRUE
*.service_names='auxdb.WORLD'
*.session_cached_cursors=50
*.session_max_open_files=20
*.sga_max_size=9663676416
*.sga_target=9663676416
*.shared_pool_reserved_size=30000000
*.sort_area_retained_size=1564672
*.sort_area_size=2097152
*.sql92_security=TRUE
*.timed_statistics=true# if you want timed statistics
*.undo_management='AUTO'
*.undo_tablespace='UNDOTBS1'
*.user_dump_dest='/u01/app/oracle/admin/auxdb/udump'
*.utl_file_dir='/usr/local/syschk','/u02/app/oracle/admin/auxdb/create','/backup02/export','/u02/home/tcs/utl_log','/u02/home/whseload/output'
*.sga_target=500M
*.sort_area_size=524288
*.star_transformation_enabled='FALSE'
*.streams_pool_size=16777216
*.timed_statistics=TRUE
*.transactions=720
*.undo_management='AUTO'
*.undo_retention=10800
*.undo_tablespace='UNDOTBS1'
*.USE_INDIRECT_DATA_BUFFERS=TRUE
*.user_dump_dest='d:\oracle\product\admin\auxdb\udump'

6) Create spfile from pfile.


RMAN> startup force nomount


7) Restore control file from backup

RMAN>restore controlfile from ‘H:\Restore\orabackup\flash_recovery_area\\BACKUPSET\2008_09_09\O1_MF_NCSN0_DAILY_FULL_ONLINE_4DCDWVKM_.BKP’;


RMAN> shutdown
RMAN> exit
C:\> sqlplus
Sql > startup mount;


8) Catalog the RMAN backup directory to new created database .



RMAN > CATALOG START WITH 'H:\Restore\orabackup\flash_recovery_area\\BACKUPSET\2008_09_09' NOPROMPT ;


9) Create command to set new names for datafiles/logfile to new location on new server.


Note : You can use the below commands to make the

 SET NEWNAME FOR DATAFILE command and place the same in run command

select 'set newname for datafile '''||name||''' to '''||replace(name,'Prod_SID','Auxiliary_SID ') ||''';' from v$datafile ;
select 'set newname for tempfile '''||name||''' to '''||replace(name,'Prod_sid','Auxiliary_SID') ||''';' from v$tempfile ;

e.g

select 'set newname for datafile '''||name||''' to '''||replace(name,'remp1','remd1') ||''';' from v$datafile ;
select 'set newname for tempfile '''||name||''' to '''||replace(name, 'remp1','remd1') ||''';' from v$tempfile ;


10) Restore and Recover database from the backup.

run
{
ALLOCATE CHANNEL ch1 DEVICE TYPE DISK ;
ALLOCATE CHANNEL ch2 DEVICE TYPE DISK ;
ALLOCATE CHANNEL ch3 DEVICE TYPE DISK ;
ALLOCATE CHANNEL ch4 DEVICE TYPE DISK ;
SET NEWNAME FOR DATAFILE 1 TO 'H:\oradata\auxdb\data\SYSTEM01.DBF';
SET NEWNAME FOR DATAFILE 2 TO 'H:\oradata\auxdb\data\UNDOTBS01.DBF';
SET NEWNAME FOR DATAFILE 3 TO 'H:\oradata\auxdb\data\SYSAUX01.DBF';
SET NEWNAME FOR DATAFILE 4 TO 'H:\oradata\auxdb\data\DRSYS01.DBF';
SET NEWNAME FOR DATAFILE 5 TO 'H:\oradata\auxdb\data\TOOLS01.DBF';
SET NEWNAME FOR DATAFILE 6 TO 'H:\oradata\auxdb\data\USERS01.DBF';
SET NEWNAME FOR DATAFILE 7 TO 'H:\oradata\auxdb\data\auxdb.DBF';
SET NEWNAME FOR DATAFILE 8 TO 'H:\oradata\auxdb\data\auxdb_02.DBF';
SET NEWNAME FOR DATAFILE 9 TO 'H:\oradata\auxdb\data\auxdb_03.DBF';
SET NEWNAME FOR DATAFILE 10 TO 'H:\oradata\auxdb\data\auxdb_04.DBF';
SET NEWNAME FOR DATAFILE 11 TO 'H:\oradata\auxdb\data\auxdb_05.DBF';
restore database ;
switch datafile all;
set until time "to_date('24-02-2022 09:14:00','dd-mm-yyyy hh24:mi:ss' )";
recover database ;
}


Time need to be put as per backup existing at server.

 Execute the command at RMAN prompt

 Recover database: Obviously recovery is dependent on the available archived (and online) redo logs. we can recover only up to the time of the backup. Further, since this is an incomplete recovery, we will have to open the database with reset logs.


11) Rename the Log files path :

select 'alter database rename file '''||MEMBER||''' to '''||replace(MEMBER,'ghnomst1','ghnomsp1') ||''';' from v$logfile ;



12) Open database with resetlogs as incomplete recovery is performed.
RMAN> alter database open resetlogs;


Need to Disable the block tracking to open the database.

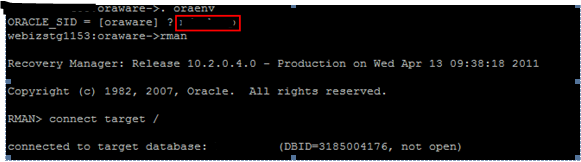

 Snapshot below :


Check the Temp files if not ..kindly create as Prod have or better create backup controlfile and you will get the command to create temp file



13) Change the name of the database:

Note : Database is open now with Source Database SID Which need to change the source database Sid

Backup the database.

Mount the database after a clean shutdown:



SHUTDOWN IMMEDIATE

STARTUP MOUNT

Invoke the DBNEWID utility (nid) from the command line using a user with SYSDBA privilege.

 oraware->nid target=sys as sysdba dbname=auxdb

Shutdown and open the database with RESETLOGS:

SHUTDOWN IMMEDIATE

Reset the DB_NAME and Instance_name of Refreshed DB in pfile

STARTUP MOUNT pfile = ‘PATH’

 ALTER DATABASE OPEN RESETLOGS;

You can learn more about oracle database administration:

Pro Oracle GoldenGate for the DBA

Oracle Security Tools Installation and Configuration

Expert Oracle Exadata

Oracle Database 12c Release 2 Real Application Clusters Handbook: Concepts, Administration, Tuning & Troubleshooting

Expert Oracle RAC 12c

==========================================================

Please check our other blogs for Refresh
